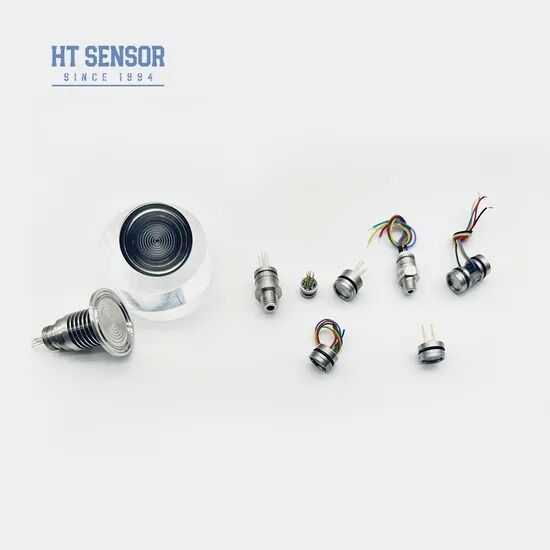

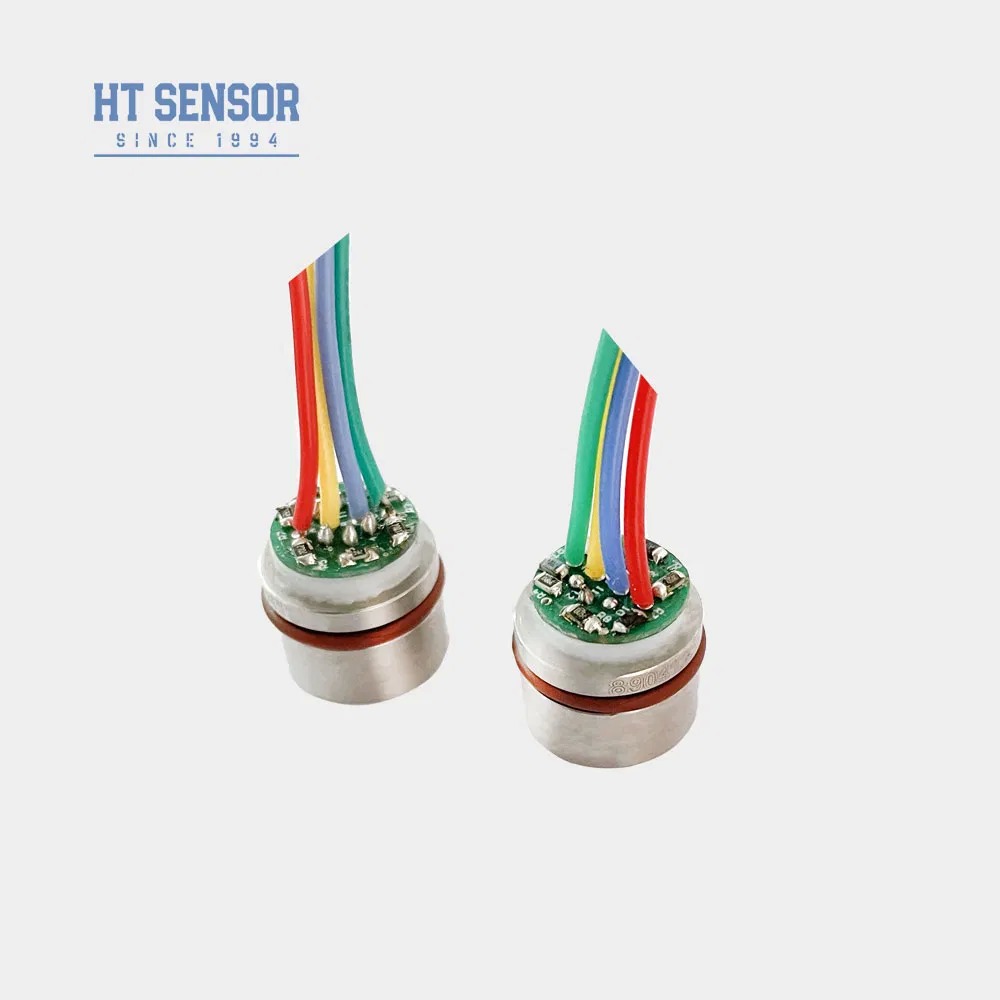

316L stainless steel with compensated oil-filled sensor pressure transducer

HT15V Silicon Piezoresistive Pressure Sensor

Introduction:
HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .

Product Features:

Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
Wide measuring range 0~350KPa~60MpaS
High reliability and excellent stability
Constant voltage supply

Applications:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Compact design, ideal for applications with limited space
Used in process control systems for monitoring and controlling pressure
Commonly used in refrigeration systems and air compressors for pressure measurement

Electrical performance:

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire,ribbon cable

Performance Parameters:
Measurement Range	Gauge(G)	350KPa,1000KPa,2000Kpa
	Absolute(A)	350KPaA,700KPaA,1000KPaA,2000KPaA
	Sealed(S)	3500KPaS,7MPaS,10MPaS
	Typ		Max	Unit
NonLinearity	±0.15		±0.3	%F.S
Repeatability	0.05		0.1	%F.S
Hysteresis	0.05		0.1	%F.S
Zero Offset Output	0±1		0±2	mV
Full Scale Output	100±1		100±2	mV
Zero Offset Temp. Drift	±0.8		±2	%F.S
Full Scale Temp. Drift	±0.8		±2	%F.S
Compensated Temp.	0~70			ºC
Operating Temperature	-20~80			ºC
Storage Temperature	-40~125			ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 %			F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g,11ms
Response Time	≤1ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	~20g
The parameters are tested under the following conditions: 10V @25ºC

Outline Construction
Dimension

Electrical connection and compensation

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
