Detailinformationen

Modellnummer:	BH93420-I	Ausgangssignal:	4-20 Ma oder RS485
IP -Bewertung:	IP68	Nettogewicht:	0,3 kg
Zwerchfellmaterial:	316L Edelstahl	Genauigkeit:	0.5%F.S
Messbereich:	0-10KPA ~ 200 m	Betriebstemperatur:	-20 bis 80 °C
Lagertemperatur:	-30 ~ 100ºC	Wohnmaterial:	1Cr18Ni9Ti
Isolationsresistenz:	> = 100mΩ@100VDC	Explosionssicherheit:	ExiaIICT6
Schutzbewertung:	IP67, IP68	O-Ring-Dichtung:	mit einer Breite von nicht mehr als 15 mm
Kabelmaterial:	Polyethylen, Polyurethan
Hervorheben:	IP68 water level transmitter 4-20mA , water level transmitter 0-10m range , 4-20mA output water level sensor

Produkt-Beschreibung

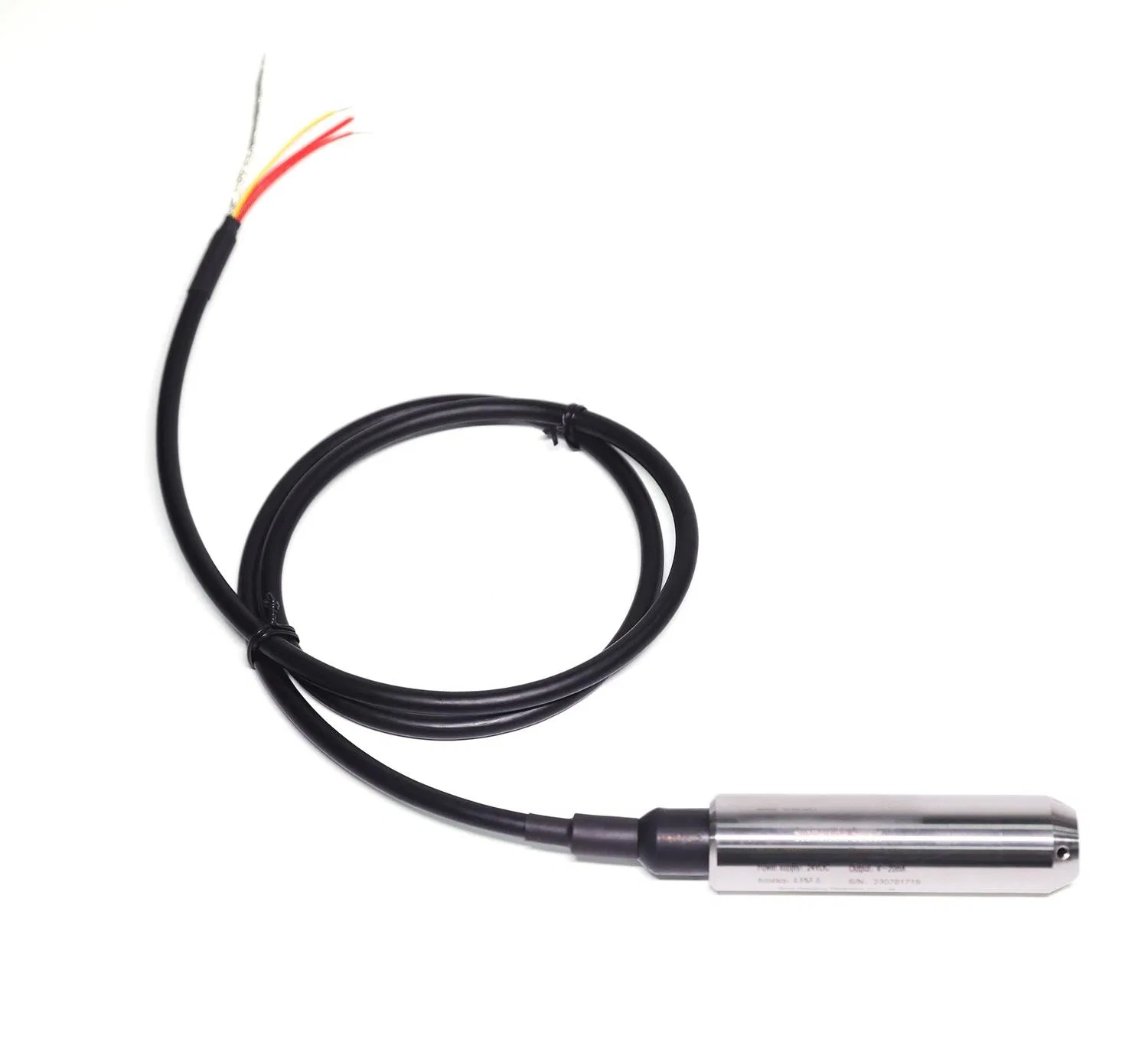

BH93420-I Submersible Liquid Level Transmitter

The BH93420-I is a submersible liquid level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, it offers excellent waterproof performance. The product has undergone rigorous high and low-temperature compensation and aging tests, ensuring high reliability and stability.

Product Features

Full stainless steel housing, suitable for various testing environments
Immersion-type probe measurement for easy installation
Multiple output signal options available
Explosion-proof marking: ExiaIICT6
High protection rate: IP68
PE or PU cable options

Applications

Compatible with 316LSS and non-corrosive liquids
Monitoring water levels in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
Measuring fuel levels in diesel and fuel tanks

Performance Parameters

Parameter	Specification
Measurement Range	0~10m...400m
Overload	≤ 2 X of rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Zero Point Temperature Drift	±1.5%F.S(Typ.) ±2%F.S (Max.)
Full Scale Temperature Drift	±1.5%F.Sr(Typ.) ±2%F.S (Max.)
Compensation Temperature	0-50ºC (0-1m. 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP67, IP68
O-Ring Seal	Fluoro rubber
Weight	~0.3Kg (without cable)
Cable Material	Polyethylene, Polyurethane

Output Signal Options

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V	5VDC
0/1~10V
0.5~4.5V
RS485 Communication Protocol

Ordering Information

Ordering Tips

Ensure the measured medium is compatible with product components
Specify the density of the measured medium
For strong electromagnetic or radio frequency interference, provide details
Install lightning protection devices and ensure proper grounding

Order Guide

Code	Option
BH93420-I	Pressure Transmitter
Measurement Range	0~10m...400m
Power Supply	D1: 24VDC \| D2: 5VDC \| D3: Other
Output Signal	S1: 4~20mADC \| S2: 1~5VDC \| S3: 0~5VDC \| S4: 0~10mADC \| S5: 0~20mADC \| S6: 0~10VDC \| S7: 0.5~4.5VDC \| S8: RS485
Pressure Type	G: Gauge Pressure \| A: Absolute Pressure \| S: Sealed Reference Pressure
Material	01: 304 Stainless Steel \| 02: 316L Stainless Steel
Cable Material	C1: PE \| C2: PU

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.

What's the typical delivery period?

5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty and after-sales service?

24-month warranty after shipment. After-sales responds within 24 hours, with remote PC network support available.

Größe und Tag:

Zertifizierung:	CE, RoHS, ISO9001

Min Bestellmenge:	1
Preis:	50
