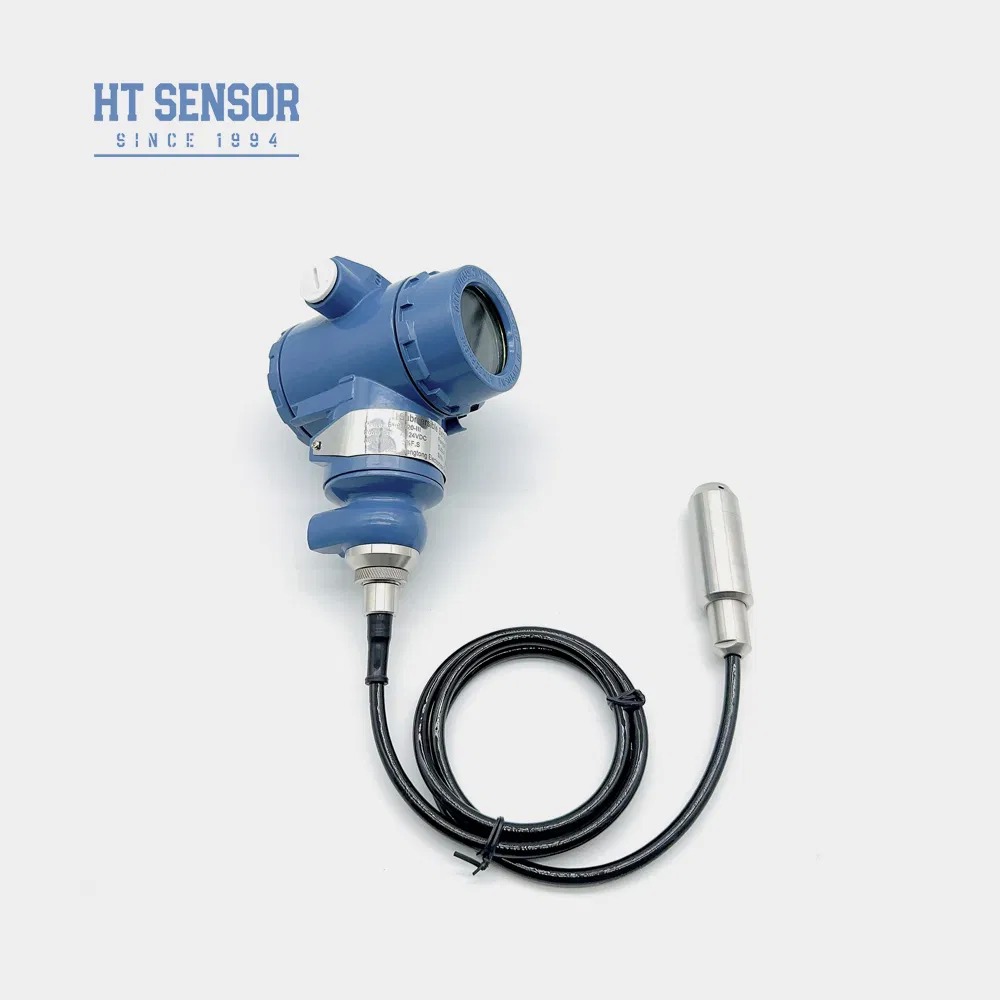

BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy

BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy
BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy
Grundlegende Informationen
Zertifizierung: CE, RoHS, ISO9001
Min Bestellmenge: 1
Preis: 40
Bestpreis Kontakt
Detailinformationen
Modellnummer: BH93420-II Ausgangssignal: 4-20mA oder RS485
IP -Bewertung: IP68 Nettogewicht: 0,3 kg
Zwerchfellmaterial: 316L Edelstahl Genauigkeit: 0.5%F.S
Messbereich: 0 ~ 10 m… 400 m Drucktyp: Messdruck, absoluter Druck, versiegelter Druck
Überlast: ≤ 2 x des Nennbereichs Betriebstemperatur: -20 bis 80 °C
Lagertemperatur: -30 ~ 100ºC Wohnmaterial: Aluminium besuchen, 1CR18NI9TI
Isolationsresistenz: > = 100mΩ@100VDC Explosionssicherheit: ExiaIICT6
Gewicht: ~ 1,1 kg (ohne Kabel)
Hervorheben:

4-20mA water level transmitter

,

high accuracy water level sensor

,

0.5% accuracy level transmitter

Produkt-Beschreibung

BH93420-II 4-20mA Analog Output Water Level Transmitter
Product Description

The BH93420-II water level transmitter utilizes a high-precision diffused silicon piezoresistive pressure sensor for accurate liquid level measurement. The static pressure measurement produces a millivolt signal proportional to liquid height, converted into a standard output signal through amplification circuitry.

Key Features
  • Split-type design for easy on-site wiring and calibration
  • Available with LED or LCD display options
  • Explosion-proof rating: ExiaIICT6
  • High protection rating: IP68
  • Multiple cable material options: PE, PU, PTFE
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, seawater, and lakes
  • Fuel level measurement in diesel and fuel tanks
Performance Parameters
Parameter Specification
Measurement Range 0~10m...400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25ºC ±0.5% (Typ.) ±0.1% (Max.)
Operating Temperature -20~80ºC
Housing Material Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Protection Rating IP68
Output Signal 4~20mA (15~30VDC) or RS485
BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy 0 BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy 1
Ordering Information
Please ensure the measured medium is compatible with product materials and specify medium density when ordering.
Option Code Description
Model BH93420-II/III Liquid level transmitter with 2088 housing
Power Supply D1 24VDC
Output Signal S1/S2 4~20mADC or RS485
Housing B4/B5 2088 industrial housing (with/without display)
Pressure Type G/A/S Gauge/Absolute/Sealed Reference Pressure
Cable Material C1/C2/C3 PE/PU/PTFE
BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy 2 BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy 3
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: We can produce up to 30,000 units monthly. Contact our sales team for large orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: What is the warranty and after-sales service?
A: 24-month warranty with 24-hour response time for technical support.
