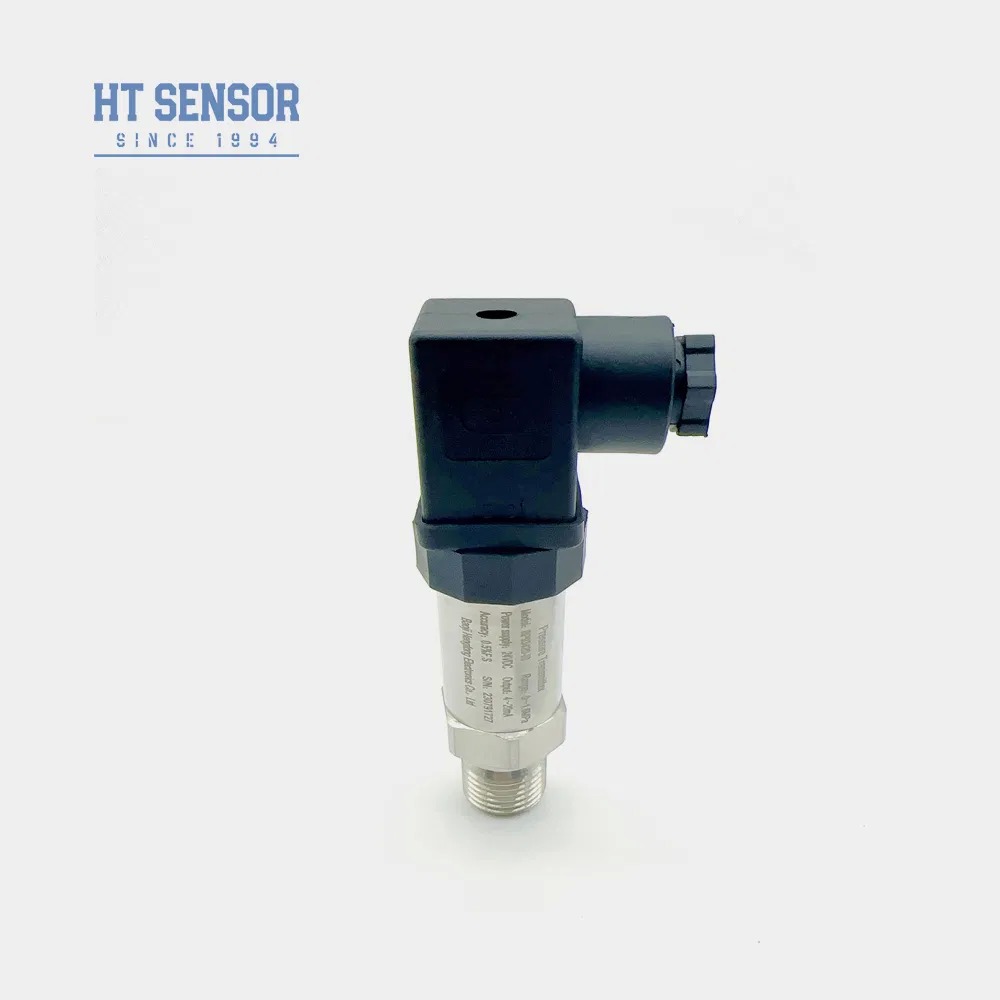

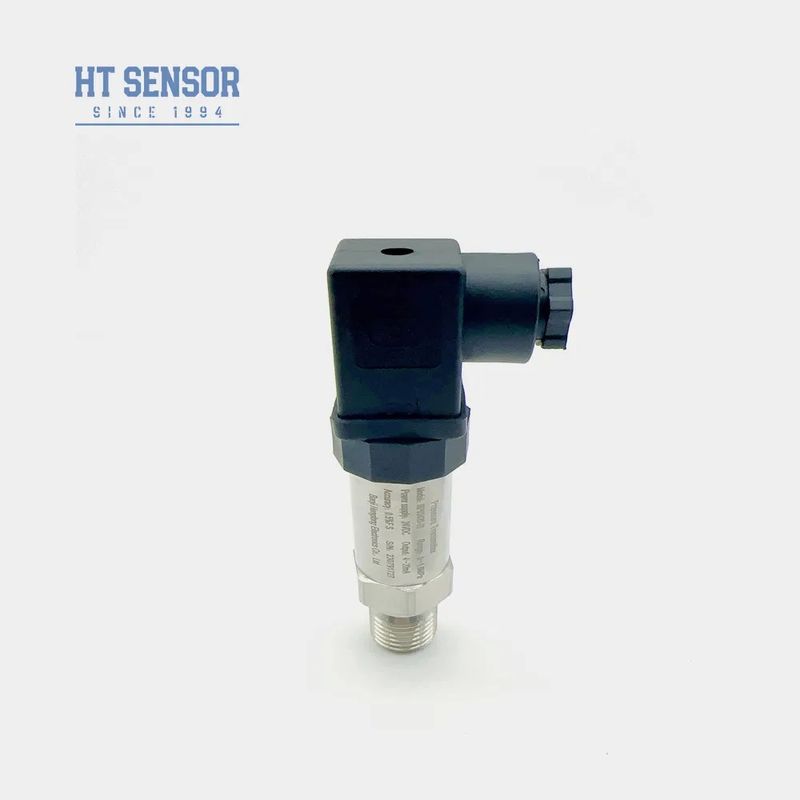

HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65

HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65
Grundlegende Informationen
Zertifizierung: CE, RoHS, ISO9001
Min Bestellmenge: 1
Preis: 15
Bestpreis Kontakt
Detailinformationen
Modellnummer: BP93420-IB Messmedium: Flüssig
Genauigkeitsnote: 0.5g Druckbereich: 0kpa~10kpa...100MPa
IP -Bewertung: IP65 Drucktyp: Messdruck, absoluter Druck, versiegelter Druck
Wohnmaterial: 316L Langfristige Stabilität: +-0,2% F.S./Jahr (Typ.)
Zwerchfellmaterial: 316L Betriebstemperatur: -20ºC ~ 80ºC
Lagertemperatur: -40ºC ~ 120ºC Ausgangssignal: 4 ~ 20 mA, 0 ~ 10/20 mA, 0/1 ~ 5 V, 0/1 ~ 10 V, 0,5 ~ 4,5 V
Versorgungsspannung: 12 ~ 30VDC, 5VDC Gewicht: ~ 0,15 kg
Isolationsresistenz: 100 mΩ 100VDC
Hervorheben:

4-20mA pressure transmitter with IP65

,

industrial pressure sensor 0.5G accuracy

,

HTsensor BP93420-IB pressure transmitter

Produkt-Beschreibung

HTsensor 4-20mA Oil Air Water Pressure Transmitter Silicon Pressure Sensor Industrial Transducer
BP93420IB Pressure Transmitter
The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core as the signal measuring element. The signal processing circuit is housed in a stainless steel enclosure, converting sensor signals into standard output signals. Rigorous testing and aging screening ensure stable and reliable performance.
Product Features
  • Wide measuring range with stainless steel construction and diverse pressure interface options
  • Compact and lightweight design for easy installation
  • Adjustable zero and full-scale calibration
  • High precision measurement with all stainless steel structure
  • Versatile output signal options
Applications
  • Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
  • Marine and aviation industry applications
  • Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range -100kPa...0kPa ~ 10kPa...100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Operating Temperature -20ºC~80ºC
Housing Material 304, 316L Stainless Steel
Protection Rating IP65
Explosion-proof Rating Ex db IIC T6 Gb
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 0
Ordering Information
  • Ensure medium compatibility with product contact parts
  • Explosion-proof models exclude digital display heads
  • Models with LCD/LED display require ≥20VDC power supply
  • Install lightning protection devices and ensure proper grounding
  • Default cable length: 1.5m (polyethylene material)
  • Specify special requirements (vibration, EMI/RFI, etc.) when ordering
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 1
Order Guide
Code Outline Construction
IB General Pressure Transmitter
IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter
Measurement Range: -0.1...0~0.01...100MPa (0-X)Kpa or MPa
Code Power Supply
D1 24VDC
D2 5VDC
Code Output Signal
S1 4~20mADC
S5 0~20mADC
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Up to 30,000 units/month. Contact sales for large orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Custom products may vary.
HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 2 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 3 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 4 HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65 5
