Detailinformationen

Modellnummer:	BPHT24-IX	Messmedium:	Luft, Gas, Flüssigkeit
Genauigkeitsnote:	0.5g	Druckbereich:	0kpa~35kpa...20MPa
IP -Bewertung:	IP65	Drucktyp:	Messdruck, absoluter Druck, versiegelter Druck
Wohnmaterial:	316L	Gewicht:	0,2 kg
Überlast:	≤ 1,5 -mal des Nennbereichs	Genauigkeit bei 25ºC:	± 0,25% (typisch) ± 0,5% (maximal)
Langfristige Stabilität:	± 0,1%fs/Jahr (Typ.) ± 0,2%fs/Jahr (max.)	Betriebstemperatur:	-20ºC ~ 80ºC
Lagertemperatur:	-40ºC ~ 120ºC	Zwerchfellmaterial:	316L
Isolationsresistenz:	100 mΩ 100VDC
Hervorheben:	BPHT24-IX pressure transmitter sensor , industrial pressure sensor IP65 , pressure transmitter 0.5G accuracy

Produkt-Beschreibung

HT Sensor China Factory LED Flush Diagram Silicon Piezoresistive Pressure Transmitter Sensor

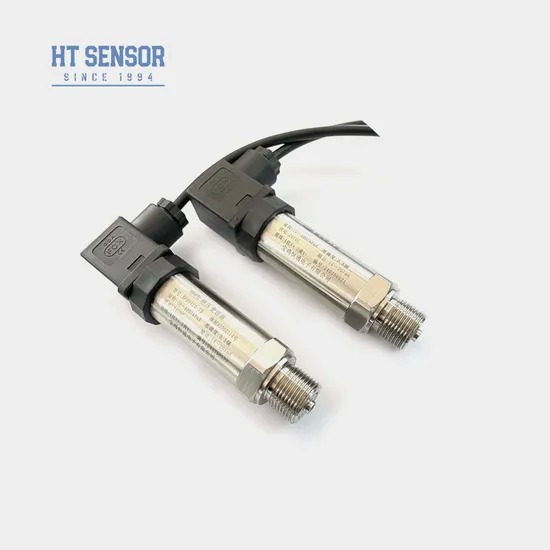

BPHT24IX Pressure Transmitter

The BPHT24IX pressure transmitter utilizes the HT series flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.

Product Features

Various pressure interface options
Designed for hygienic applications to prevent medium scaling
High accuracy with a fully stainless steel structure
Easy to clean and maintain

Applications

Suitable for measuring non-corrosive gases and liquids with 316L
Ideal for environmental protection and chemical industries
Used in the marine and aviation industries
Well-suited for use in the medical, biopharmaceutical, and food hygiene industries

Performance Parameters

Measurement Range	0~35Kpa…~20MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.2kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Outline Construction

Ordering Tips

Ensure the medium to be measured is compatible with the product's contact parts
Note that explosion-proof type products do not include digital display heads
For transmitters with LCD/LED display, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
Default cable length is 1.5m (polyethylene); specify alternative materials if needed
Inform about special requirements (vibration, impact, EMI/RFI) when ordering

Order Guide

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production scheduling.

Q: What's the typical delivery period?

A: 5~8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network support available.

Größe und Tag:

Zertifizierung:	CE, RoHS, ISO9001

Min Bestellmenge:	1
Preis:	30
