Detailinformationen

Modellnummer:	BH93420-III	Druckbereich:	0-1m-400 mH2O
Anzeigeart:	LED	Genauigkeitsnote:	0.1%,00,25%
IP -Bewertung:	IP68	Nettogewicht:	1,6 kg
Zwerchfellmaterial:	316L Edelstahl	Messbereich:	0 ~ 10 m… 400 mH2O
Drucktyp:	Messdruck, absoluter Druck, versiegelter Druck	Überlast:	≤ 2x Nennbereich
Genauigkeit bei 25ºC:	± 0,1% (Typ.) ± 0,2% (max.)	Betriebstemperatur:	-20 bis 80 °C
Lagertemperatur:	-30 ~ 100ºC	Wohnmaterial:	Aluminium gegossen, Edelstahl 1CR18NI9TI
Ausgangssignal:	4 ~ 20mA mit HART
Hervorheben:	HT Sensor water level transmitter IP68 , BH93420-III water level sensor 0.1% accuracy , submersible water level transmitter with warranty

Produkt-Beschreibung

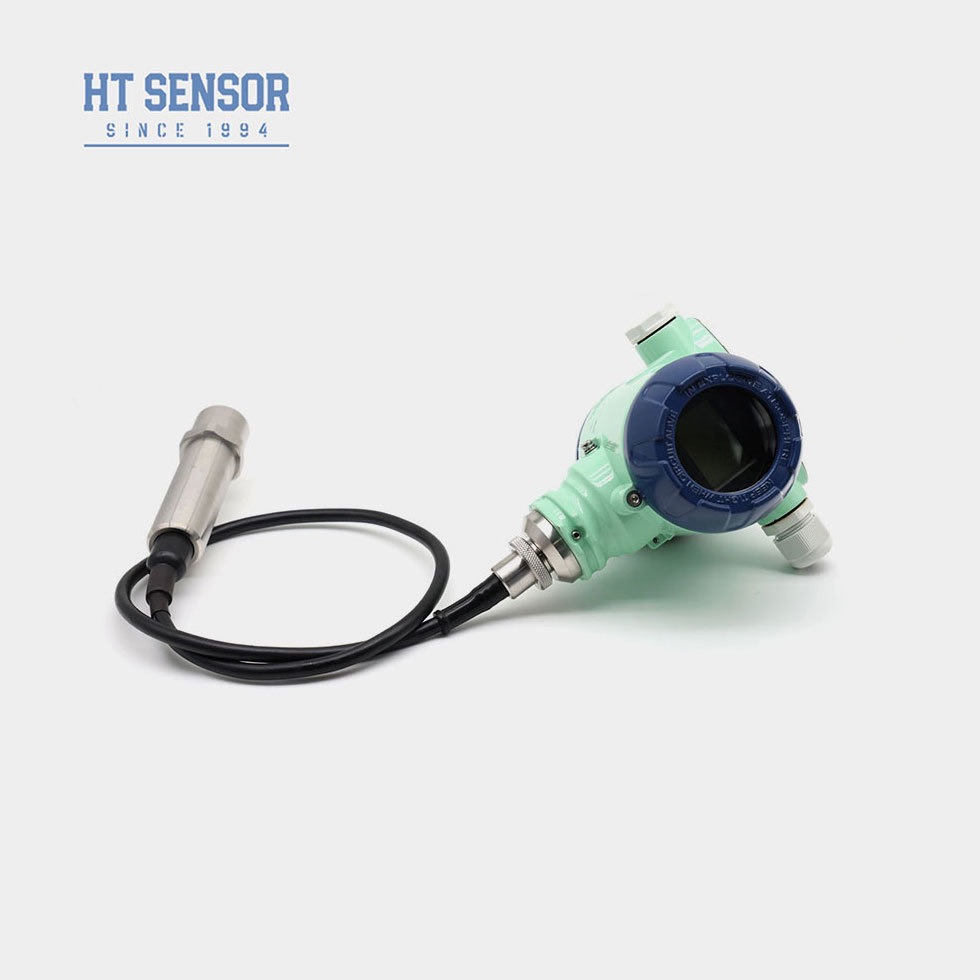

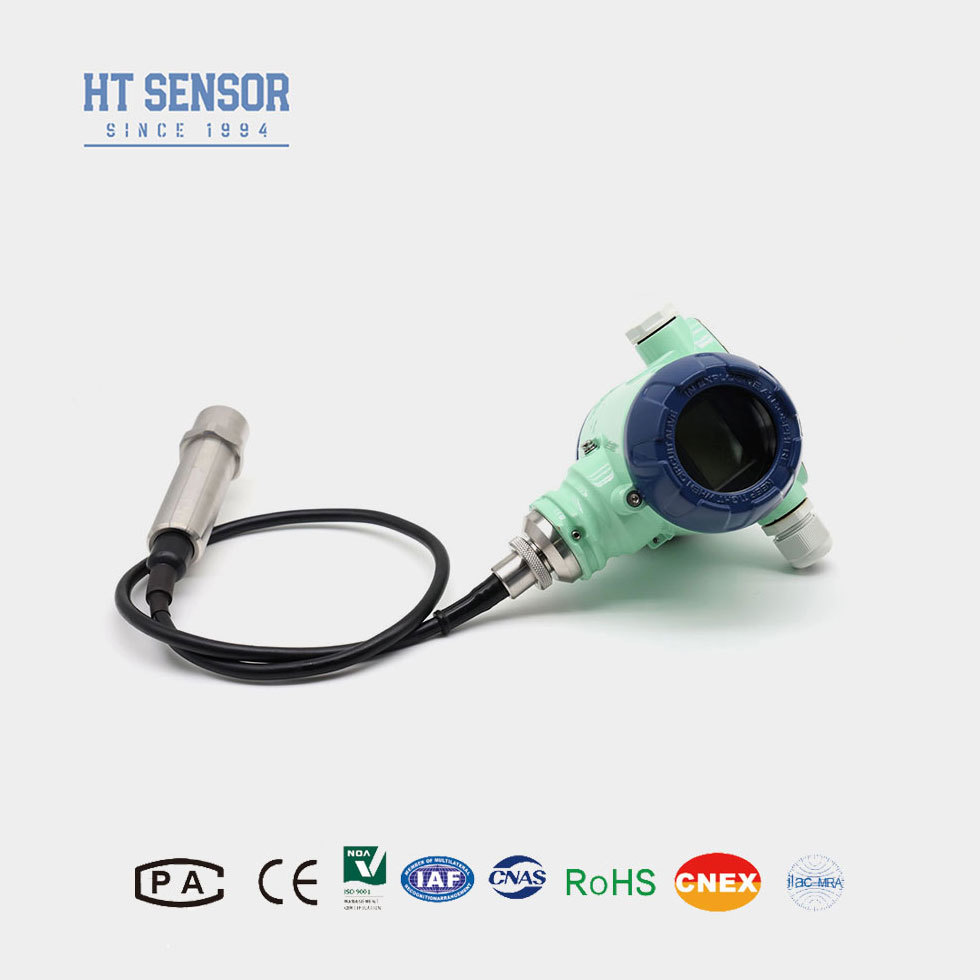

HT Sensor BHZ93420-III Water Level Transmitter with 0.1% Accuracy

Product Description

The BHZ93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.

Key Features

HART communication protocol output with display capability
High accuracy (±0.1%) with excellent stability
Explosion-proof rating: ExiaIICT6
High protection level: IP68
Multiple cable options: PE, PTFT, PU
Versatile structures to meet various on-site requirements

Applications

Compatible with 316LSS and non-corrosive liquids
Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and oil tank level monitoring

Performance Parameters

Parameter	Specification
Measurement Range	0~10m...400mH2O
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25ºC	±0.1% (Typ.) ±0.2% (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Operating Temperature	-20~80ºC
Housing Material	Cast aluminum, Stainless steel 1Cr18Ni9Ti
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68

Outline Construction

Electrical Connection

Connection	Wire Color
V+	Red
V-	Yellow

Ordering Information

Please ensure compatibility with measured medium and specify density when ordering.

Code	Option
D1	24VDC Power Supply
S1/S2	4~20mADC / 4~20mADC with Hart
B4/B5/B6	2088 with display / 3051 / 3051A
C1/C2/C3	PE / PU / PTFE Cable

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision (±0.1%), durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Up to 30,000 units/month. Contact sales for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Custom products may vary.

Größe und Tag:

Zertifizierung:	CE, RoHS, ISO9001

Min Bestellmenge:	1
Preis:	70
