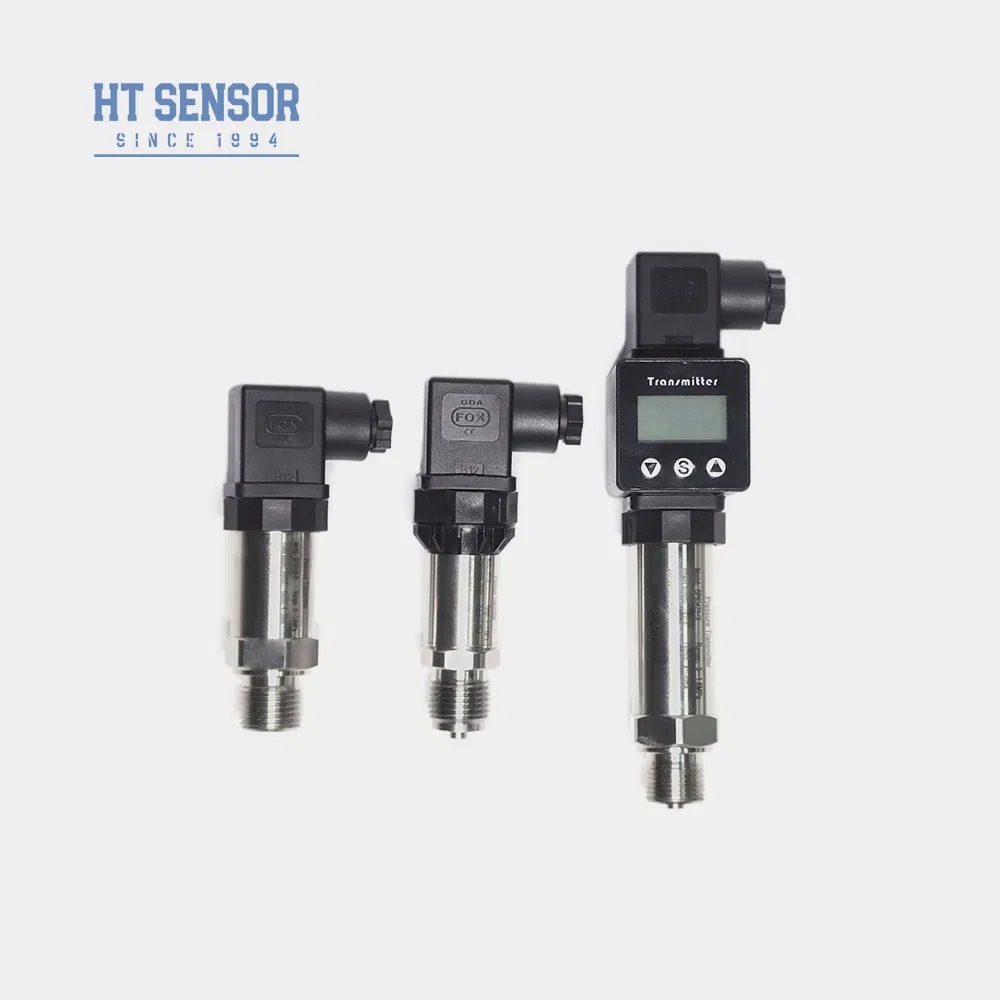

BP93420-IX Digital Pressure Transmitter 0.5% Accuracy IP65
Produktdetails
| Modellnummer: | BP93420-IX | Messmedium: | Flüssig |
|---|---|---|---|
| Genauigkeitsnote: | ≤ 0,5% F.S. | Druckbereich: | - 100 Kpa... 0 Kpa ~ 10 Kpa... 100 MPa |
| IP -Bewertung: | IP65 | Drucktyp: | Messdruck, absoluter Druck, versiegelter Druck |
| Wohnmaterial: | 316L Edelstahl | Frequenzgang: | 2.4kHz |
| Überlastkapazität: | ≤ 1,5 -mal des Nennbereichs | Betriebstemperatur: | -20ºC ~ 80ºC |
| Lagertemperatur: | -40ºC ~ 120ºC | Zwerchfellmaterial: | 316L |
| Isolationsresistenz: | 100 mΩ 100VDC | Gewicht: | ~ 0,25 kg |
| Versorgungsspannung: | 12 ~ 30VDC, 5VDC, 3,6 ~ 30 V / Batterie | ||
| Hervorheben |
Digital Pressure Transmitter 0.5% Accuracy,IP65 Industrial Pressure Sensor,BP93420-IX Pressure Transmitter with Warranty |
||
Produktbeschreibung
Produkt-Highlights
BP93420-IX Pressure Transmitter The BP93420IX pressure transmitter utilizes the HT series silicon piezoresistive isolation diaphragm oil-filled core as the signal measuring element. This integrated pressure transmitter combines pressure measurement, display, and output functions. Rigorously tested ...
19 mm Öl gefüllter Drucktransmitter Diffus Silikon Drucktransmitter Wasseröl-Test
Oil Filled Diffused Sillcon Pressure Transmitter Sensor For Water And Oil Test 19mm Silicon Piezoresistive Pressure Sensor Introduction of Pressure Transmitter Sensor: HT19F functions as a silicon piezoresistive pressure sensor ,with a core consisting of a highly stable diffused silicon element,. It ...
OEM-Wasseröl-Flush-Diaphragma-Drucktransmitter Getränke Digitale Niveausendersensor
BP93420-IIIQT1 OEM water oil Beverage glue Flush Diaphragm Pressure Sensor Transmitter BP93420-IIIQT1 Pressure Transmitter Introduction of flush diaphragm pressure sensor: BP93420-IIIQT1 flush-diaphragm pressure sensor transmitter is an analog pressure transmitter with a flat membrane structure, ...
BPHT24-III Digitale Druckübertrager Flush-Diaphragma Digitale Drucksensor
Hengtong BPHT24-III Digital Flush diaphragm pressure sensor Transmitter China BPHT24-III Pressure Transmitter Introduction of flush diaphragm pressure sensor transmitter: BPHT24-III pressure transmitter is mainly used in the pressure measurement of viscous liquid mud anti-scaling and anti-crystalliz...
BPZK04-2 Druckschalter Elektrisch 24VDC 4-20mA Digitale Druckschalter LCD-Display Elektronischer Druckschalter
24Vdc 4-20MA 2-Point Electronic Pressure Switch Digital Pressure Switch With LCD Display BPZK04-2 Electronic Pressure Switch Introduction: BPK-ZK04-2 electronic pressure switch is a set of pressure measurement, control display, transmission output as one of the full digital control products. It can ...
