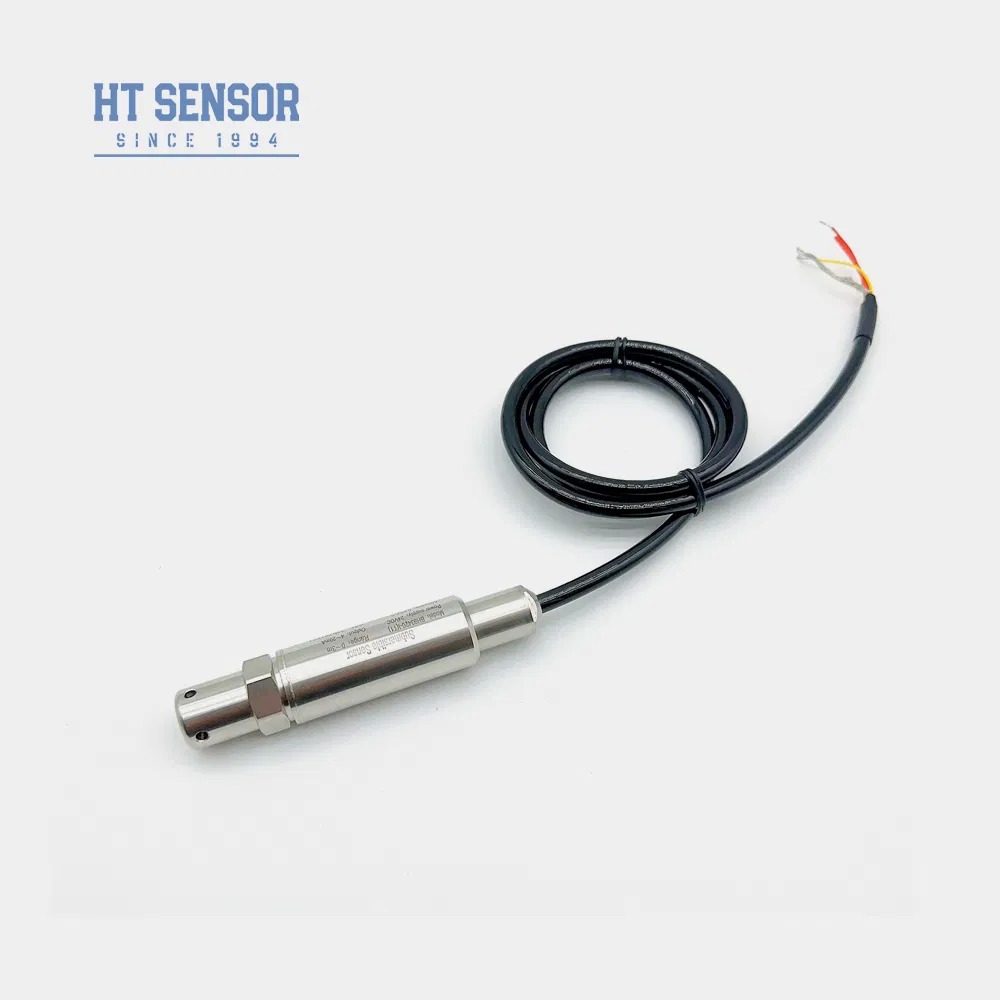

BH93420-IT Liquid Level Transmitter 0.25% Accuracy IP68 Stainless Steel
Produktdetails
| Modellnummer: | BH93420-IT | Druckbereich: | 0 ~ 10 m… 400 m |
|---|---|---|---|
| Genauigkeitsnote: | 00,25%,00,5% | IP -Bewertung: | IP68 |
| Nettogewicht: | 0,3 kg | Zwerchfellmaterial: | 316L Edelstahl |
| Kabelmaterial: | PU/PE/PTFE | Betriebstemperatur: | -20 bis 80 °C |
| Lagertemperatur: | -30 ~ 100ºC | Wohnmaterial: | 1cr18ni9ti, 316L Edelstahl |
| Isolationsresistenz: | > = 100mΩ@100VDC | Explosionssicherheit: | ExiaIICT6 |
| Schutzbewertung: | IP67, IP68 | Ausgangssignal: | 4 ~ 20 mA, 0 ~ 10/20 mA, 0/1 ~ 5 V, 0/1 ~ 10 V, 0,5 ~ 4,5 V |
| Versorgungsspannung: | 12 ~ 30VDC, 5VDC | ||
| Hervorheben |
stainless steel liquid level transmitter,IP68 water level transmitter,high accuracy liquid level sensor |
||
Produktbeschreibung
Produkt-Highlights
Special Liquid Level Transmitter for Gasoline Pressure Transmitter Testing Sensor BH93420-IT Liquid Level Transmitter The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with ...
19 mm Öl gefüllter Drucktransmitter Diffus Silikon Drucktransmitter Wasseröl-Test
Oil Filled Diffused Sillcon Pressure Transmitter Sensor For Water And Oil Test 19mm Silicon Piezoresistive Pressure Sensor Introduction of Pressure Transmitter Sensor: HT19F functions as a silicon piezoresistive pressure sensor ,with a core consisting of a highly stable diffused silicon element,. It ...
OEM-Wasseröl-Flush-Diaphragma-Drucktransmitter Getränke Digitale Niveausendersensor
BP93420-IIIQT1 OEM water oil Beverage glue Flush Diaphragm Pressure Sensor Transmitter BP93420-IIIQT1 Pressure Transmitter Introduction of flush diaphragm pressure sensor: BP93420-IIIQT1 flush-diaphragm pressure sensor transmitter is an analog pressure transmitter with a flat membrane structure, ...
BPHT24-III Digitale Druckübertrager Flush-Diaphragma Digitale Drucksensor
Hengtong BPHT24-III Digital Flush diaphragm pressure sensor Transmitter China BPHT24-III Pressure Transmitter Introduction of flush diaphragm pressure sensor transmitter: BPHT24-III pressure transmitter is mainly used in the pressure measurement of viscous liquid mud anti-scaling and anti-crystalliz...
BPZK04-2 Druckschalter Elektrisch 24VDC 4-20mA Digitale Druckschalter LCD-Display Elektronischer Druckschalter
24Vdc 4-20MA 2-Point Electronic Pressure Switch Digital Pressure Switch With LCD Display BPZK04-2 Electronic Pressure Switch Introduction: BPK-ZK04-2 electronic pressure switch is a set of pressure measurement, control display, transmission output as one of the full digital control products. It can ...
