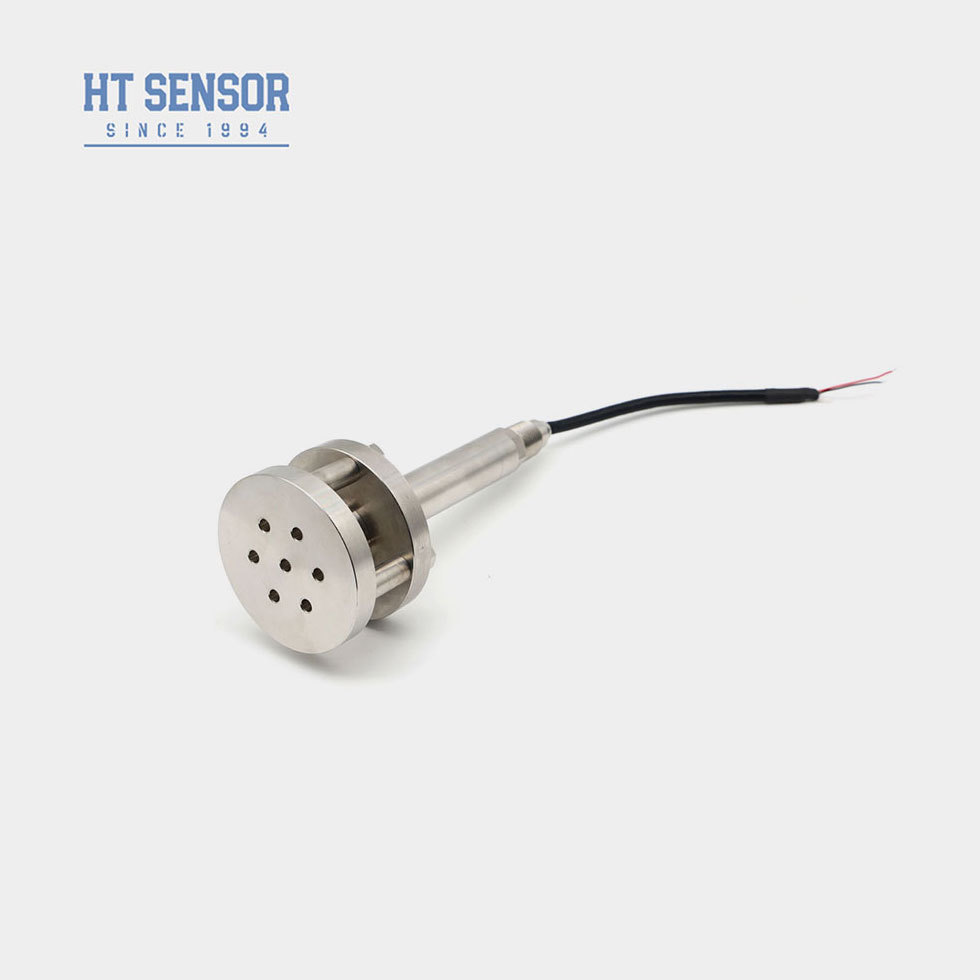

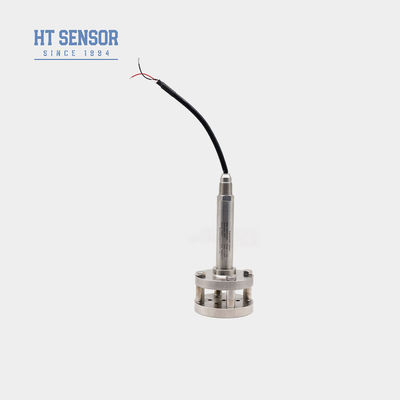

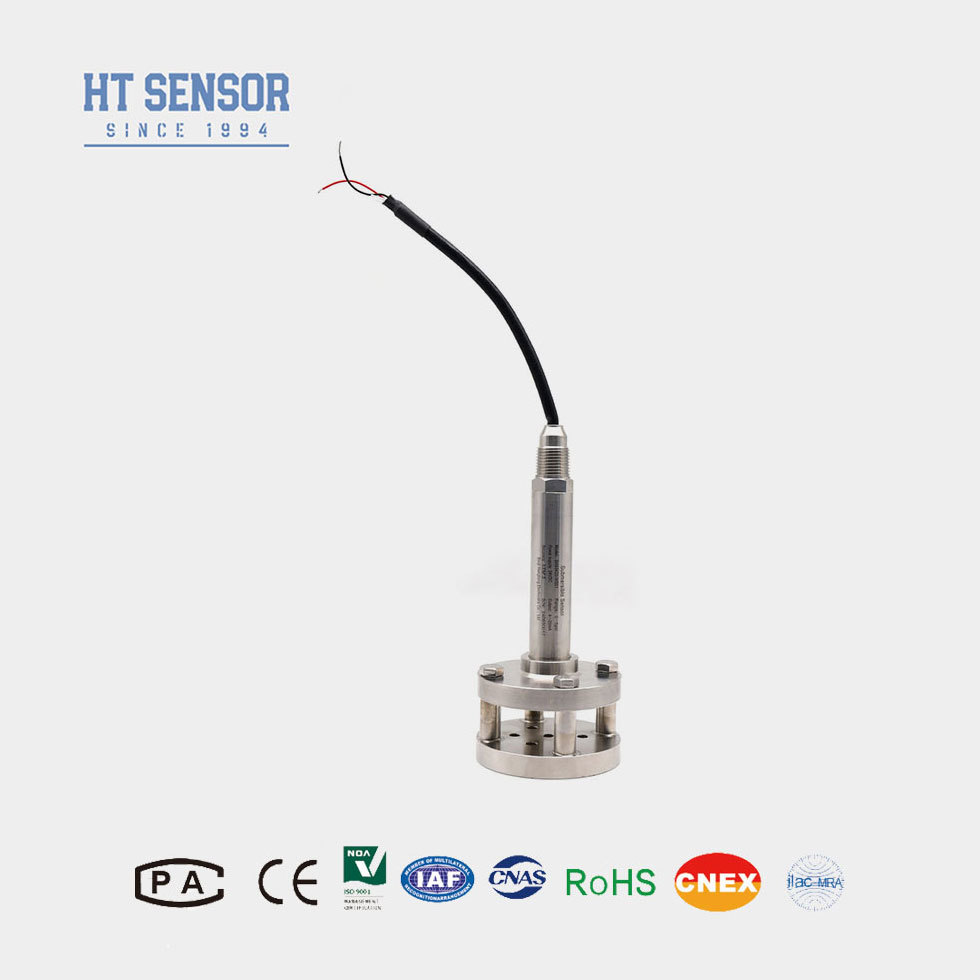

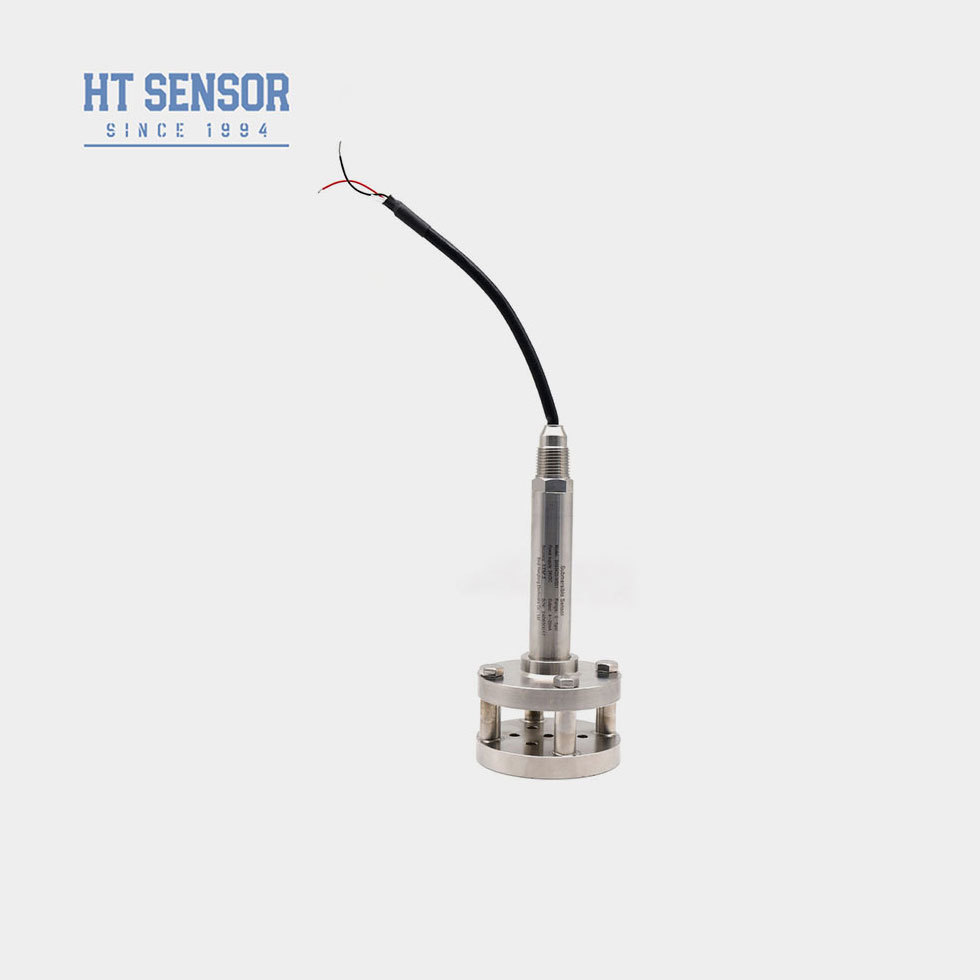

4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy

4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
Grundlegende Informationen
Herkunftsort: CN
Markenname: HT
Zertifizierung: CE, RoHS, ISO9001
Modellnummer: BHWS
Dokument: BHWS-.pdf
Min Bestellmenge: 1
Preis: 200
Verpackung Informationen: Karton
Bestpreis Kontakt
Detailinformationen
Modellnummer: BH983420-WS Druckbereich: Messdruck, absolute Druck
Genauigkeitsnote: 0.2%,00,5% IP -Bewertung: IP68
Nettogewicht: 2,1 kg Zwerchfellmaterial: 316L Edelstahl
Wohnmaterial: 316L Edelstahl Stabilität: ± 0,1% F.S./Jahr (Typ.)
Messbereich: 0-10m Überlastkapazität: ≤ 2x Nennbereich
Betriebstemperatur: -20 bis 100 °C Lagertemperatur: -30 ~ 100ºC
Isolationsresistenz: > = 100mΩ@100VDC Explosionssicherheit: ExiaIICT6
Ausgangssignal: 4-20 mA Betriebstemperatur: -20 ~ 80 ℃
Material: 304Sst, 316Sst Kabel: Ptfe
Typ: Silikonpiezoresistiver Typ angepasst: Nicht vertraulich
Vollständige Drift: ± 1,5%F.SR (Typ.) ± 2%fs (max.) Anzeige: LCD
Prozessdruck: -0.02-0.1mpa Strukturentwurf: Flanschart
Anpassung: OEM/ODM Modell: 1
Kabellänge: 5m HS -Code: 90261000
Hervorheben:

4-20mA sewage level sensor

,

IP68 water level transmitter

,

316L stainless steel level sensor

Produkt-Beschreibung

                                              Sewage  Liquid Level Transmitter
Product Overview

The BH-WS Sewage Level Sensor is a high-performance liquid level transmitter designed for demanding industrial applications. Utilizing a precision piezoresistive silicon pressure sensor with full 316L stainless steel construction, this robust device delivers reliable measurements in contaminated liquid environments.

Key Features
  • Engineered for harsh industrial environments
  • Explosion-proof certification: ExiaIICT6
  • High protection rating: IP68
  • Full 316L stainless steel construction for superior corrosion resistance
  • Exceptional measurement accuracy and long-term stability
Applications
  • Compatible with 316L stainless steel and non-corrosive liquids
  • Fuel level monitoring in diesel tanks, fuel storage containers
  • Liquid level measurement in polluted environments including:
    • Sludge tanks and clarifiers
    • Digesters and chemical storage tanks
    • Sewage pits and water reservoirs
    • Alum tanks and lime slurry systems
Technical Specifications
Parameter Specification
Measurement Range 0~10m...400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity ≤ 2X rated range
Accuracy @ 25°C ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Operating Temperature -20~100°C
Housing Material 316L Stainless Steel
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
Weight ~2.1Kg (without cable)
Electrical Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA   3 wire
0/1~5V, 0/1~10V, 0.5~4.5V 5VDC
Product Images
4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 0 4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 1 4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 2 4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 3 4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy 4
Ordering Information

Please ensure compatibility with your measured medium and specify density when ordering.

  • For strong electromagnetic interference environments, please provide details
  • Recommended to install lightning protection devices and ensure proper grounding
Order Guide
Code Description
BH-WS Pressure Transmitter
D1 24VDC Power Supply
S1 4~20mADC Output
G Gauge Pressure Type
C1 PE Cable Material
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: Our transmitters offer high precision, durability, and excellent performance in harsh conditions. Custom configurations are available.
Q: Can I customize special specifications?
A: Yes, our engineering team provides OEM/ODM services to meet specific application requirements.
Q: What is your production capacity?
A: We can produce 30,000 units monthly. Contact our sales team for large order planning.
Q: What's the typical delivery period?
A: Standard models ship in 5-8 business days. Custom products may vary.
Q: What is the warranty and after-sales service?
A: 24-month warranty with 24-hour response time for technical support, including remote assistance.
