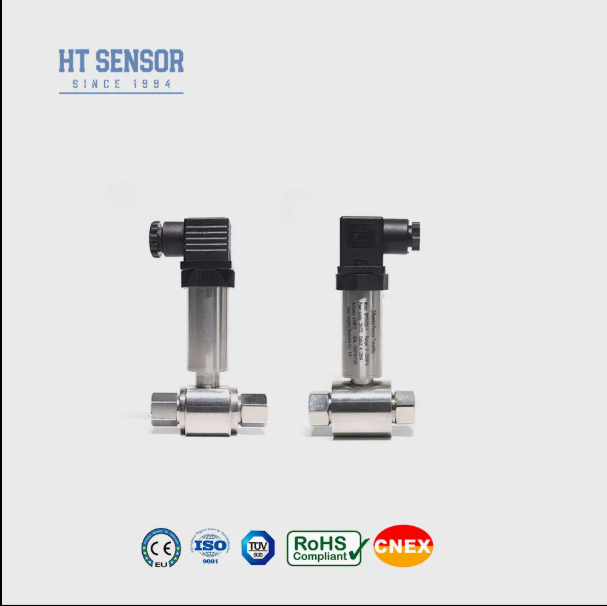

Stainless Steel Differential Pressure Transmitter with Silicon Sensor and Threaded Connection for Oil and Air Test

Stainless Steel Differential Pressure Transmitter with Silicon Sensor and Threaded Connection for Oil and Air Test
Stainless Steel Differential Pressure Transmitter with Silicon Sensor and Threaded Connection for Oil and Air Test
Grundlegende Informationen
Bestpreis Kontakt
Detailinformationen
Signalausgang: I2C 4-20mA Einzelpackungsgröße: 1X1,2X0 cm
IP -Schutz: IP65 Herkunft: Baoji, China
Betriebstemperatur: -40 bis 85 ° C. Verbindungsart: Gewinde
Sensor: Siliziumsensor Verbindungsstandard: LÄRM, JIS, ANSI
Spezifikation: Siliziumdrucksensor Umgebungstemperatur: -10 bis 80°C
Typ: Normaldrucktransmitter
Hervorheben:

Silicon Sensor Differential Pressure Transmitter

,

Threaded Connection Level Sensor

,

DIN/JIS/ANSI Standard Pressure Transmitter Sensor

Produkt-Beschreibung

Oil and Air Test Stainless Steel Differential Pressure Transmitter Level Sensor
BP93420DII Differential Pressure Transmitter
Product Introduction
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure from the measured medium acts on the sensor's corrugated diaphragms, the Wheatstone bridge output signal maintains excellent linearity with the pressure differential, enabling precise measurement. This transmitter is ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industries.
Key Features
  • Stainless steel construction for durability and compact, easy installation
  • Rigorous temperature compensation and aging screening ensure stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring configurations
Industrial Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipelines
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology applications
  • Pipeline and furnace chamber pressure measurement systems
