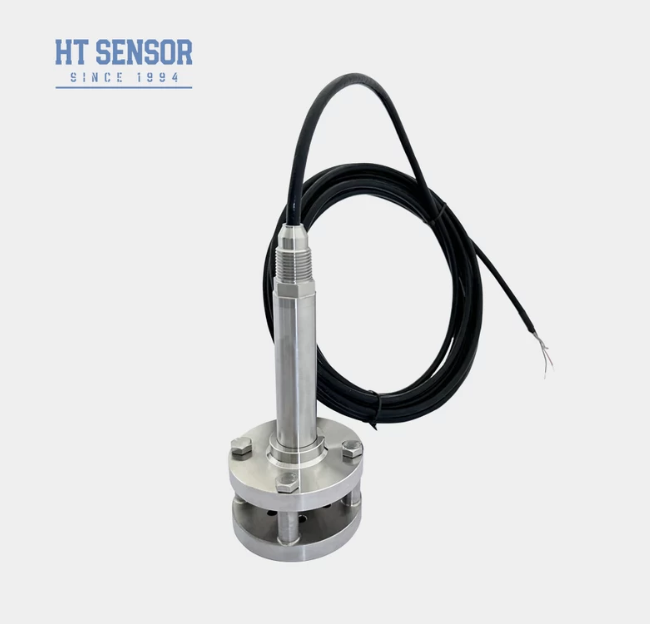

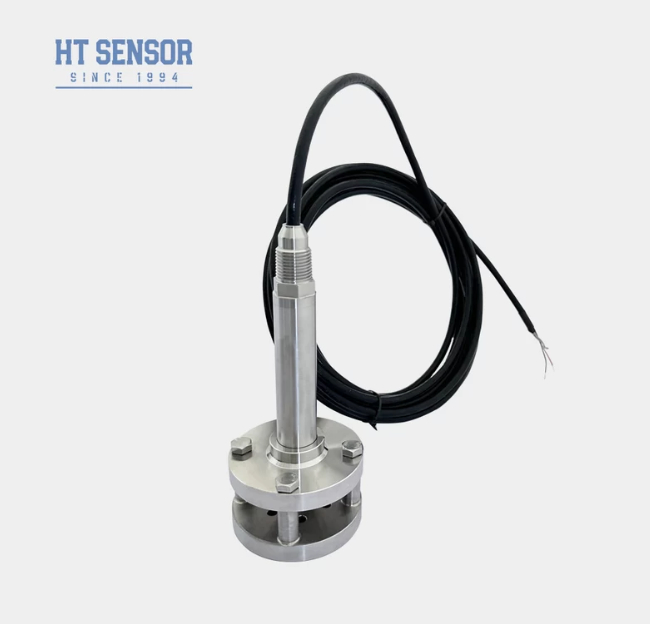

316L Stainless Steel IP68 Corrosion Resistant Submersible Level Sensor Pressure Transmitter for Harsh Environments
Product Details
| Hervorheben |
316L Level Sensor,IP68 Pressure Transmitter,Corrosion Resistant Submersible Sensor |
||
|---|---|---|---|
Product Description
- Wastewater treatment: Sludge tanks, digesters, clarifiers
- Chemical processing: Alum tanks, chemical storage vessels, lime slurry
- Industrial storage: Oil tanks, sewage sumps, water reservoirs
- Specially designed for harsh environments
- Explosion-proof marking: ExiaIICT6
- High protection: IP68
- Full 316L stainless steel structure with excellent corrosion resistance
- High precision and good stability
- Compatible with 316LSS, noncorrosive liquids
- Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
- Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs
| Measurement Range | 0~10m…400m |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, Teflon |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
| BH | Code | Outline Construction |
|---|---|---|
| WS | Pressure Transmitter | |
| Measurement Range | 0~10m…400m(H2O) |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| Code | Cable Material |
|---|---|
| C1 | PE |
| C2 | PU |
| C3 | PTFE |
